E1 Lite E1 Lite

WISEASY E1 Lite
EMV Mini ECR

The '1 Solution', for all your checkout needs

Speed and Efficiency Redefined Speed and Efficiency Redefined

Speed and Efficiency Redefined

Beneath its sleek design, the E1 Lite runs on a robust quad-core 2.0GHz processor and the latest Android 13, ensuring swift performance for all tasks. Be it a busy day or a calm one, no more waiting or slow transactions with the E1 Lite.

Expansive 6.7-inch touch screen Expansive 6.7-inch touch screen

Expansive 6.7-inch touch screen

With its expansive 6.7-inch touchscreen, the E1 Lite offers you the luxury of seeing everything at a glance - from detailed product lists to crisp, clear payment confirmations.

Transparent Transactions, Elevated Customer Confidence Transparent Transactions, Elevated Customer Confidence

Transparent Transactions, Elevated Customer Confidence

The E1 lite features an innovative secondary display for crystal-clear visibility of transaction amounts. Enhance transparency, trust, and engagement with your customers. The dot matrix display not only ensures the integrity of each transaction, but also reinforces customer confidence in your services.

Contactless Payments, Elevated Contactless Payments, Elevated

Contactless Payments, Elevated

No more fumbling for the NFC antenna with the E1 Lite. Its smart placement at the front top makes contactless payments effortless, ensuring faster transactions, even during peak hours.

Receipts in a Flash Receipts in a Flash

Receipts in a Flash

Our enhanced high-speed printer is a game-changer, delivering receipts at an astonishing speed of 80mm/s.
Say goodbye to the days of waiting and hello to efficiency, keeping your customers happy and your lines moving.

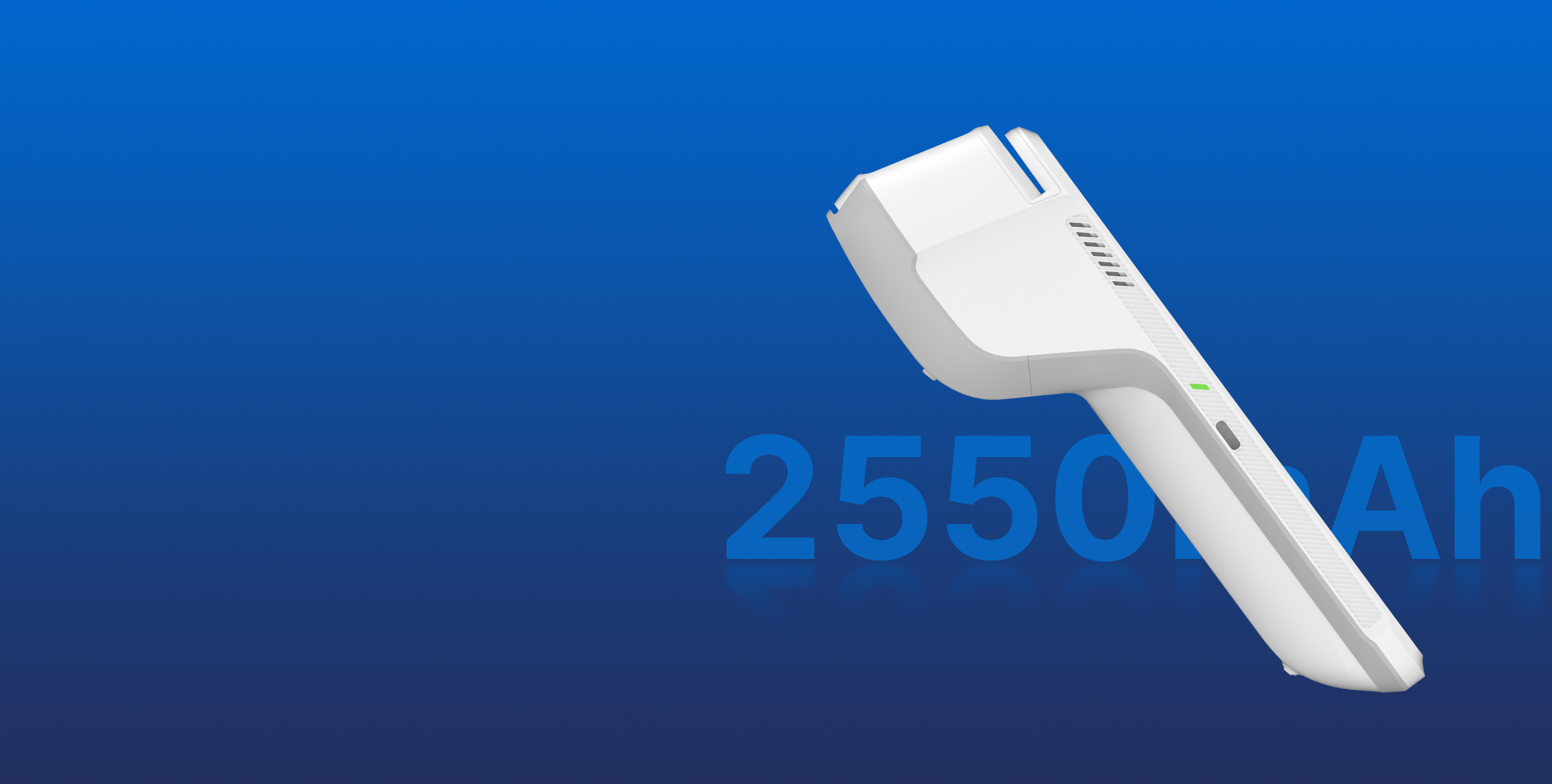

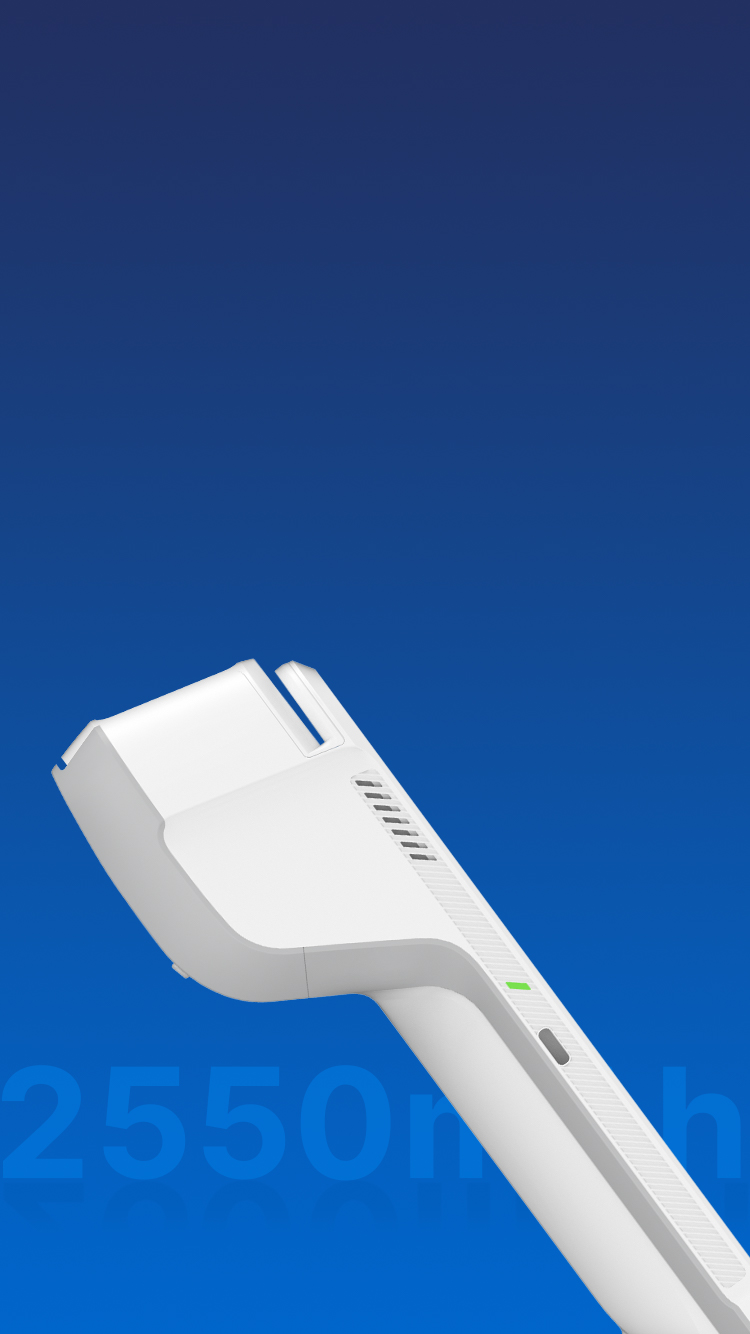

Uninterrupted Service, All Day Long Uninterrupted Service, All Day Long

Uninterrupted Service, All Day Long

Powered by a high-capacity 7.2V/2600mAh battery, the E1 Lite is your steadfast companion for long, busy days. This powerhouse ensures that your ability to accept payments never falters, making every transaction as seamless as the first.

WISEASY E1 Lite Specifications

Model Name

Model Name

P051

Operating System

Operating System

Android 13

CPU

CPU

Quad-core 2.0GHz

Security Processor

Security Processor

MH2101

Memory

Memory

2GB LPDDR4X + 32GB eMMC

Optional: 3GB LPDDR4X + 64GB eMMC

Display

Display

Main display: 6.745 Inches (1600*720) IPS Capacitance, Multi-touch

Second display: Dot matrix screen

Network

Network

2G/3G/4G

WIFI

WIFI

2.4G/5G, 802.11 a/b/g/n/ac

Bluetooth

Bluetooth

Bluetooth5.1, BLE

GPS

GPS

GPS/A-GPS, Glonass, Beidou, Galileo

Camera

Camera

Front Camera: 2M FF

Rear Camera: 5M FF

Optional: 13M AF

Flashlight LED: Torch LED 100mA

Fingerprint

Fingerprint

Aralek A400-M (Optional)

Audio

Audio

Speaker: 0.8W

Microphone: 1*MIC (Optional)

NFC

NFC

1. 13.56MHz

2. Support ISO/IEC 14443 Type A&B Mifare S50/S70

FeliCa Compliance

Card Reader

Card Reader

MSR: ISO7810-7813, 3 tracks

IC Card: ISO7816

Card Slot

Card Slot

1*Nano SIM + 2*PSAM + 1*Micro SD

1*Nano SIM + 1*Mini SIM + 1*PSAM + 1*Micro SD

Optional: 1*eSIM + 1*Nano SIM+ 2*PSAM

Button

Button

Power Button / Multifunction Button

Battery

Battery

Removable, 7.2V high Voltage, 2600mAh, 18650

Optional: Removable, 7.2V high Voltage, 3350mAh, 18650

Peripheral Ports

Peripheral Ports

Type C USB2.0, High Speed, OTG

Weight

Weight

452g

Size (L*W*H)

Size (L*W*H)

195*81*61mm

Printer

Printer

2" High Speed Thermal Printer

Roll Size: 58*40mm

Print Speed: 80mm/s Laboratory tested

Adapter

Adapter

Input: AC 100-240V, 50/60Hz

Output: 5V/2A

Accessories

Accessories

Optional: Professional High-speed Scanner, Charging Cradle, Multi-port Charging Cradle

Environment

Environment

Storage temperature: -20°C to 60°C

Operating temperature: -10°C to 55°C

Humidity: ≤95%

Certifications

Certifications

EMV CT L1/L2, EMV CTLS L1, VISA, Mastercard, AMEX, Discover, PCI PTS 6.2, TQM, CE, CB, BIS, WPC, RoHs
