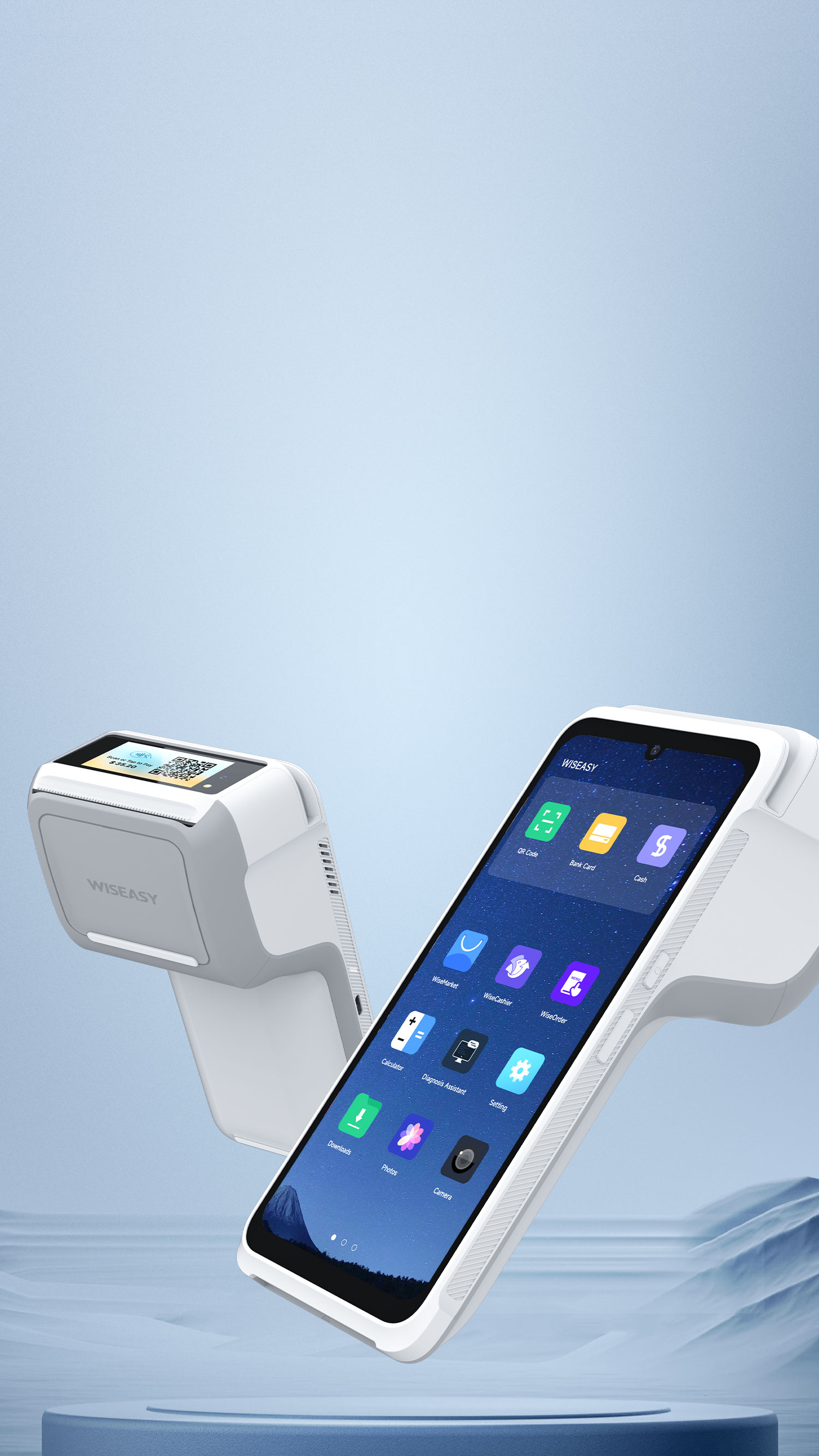

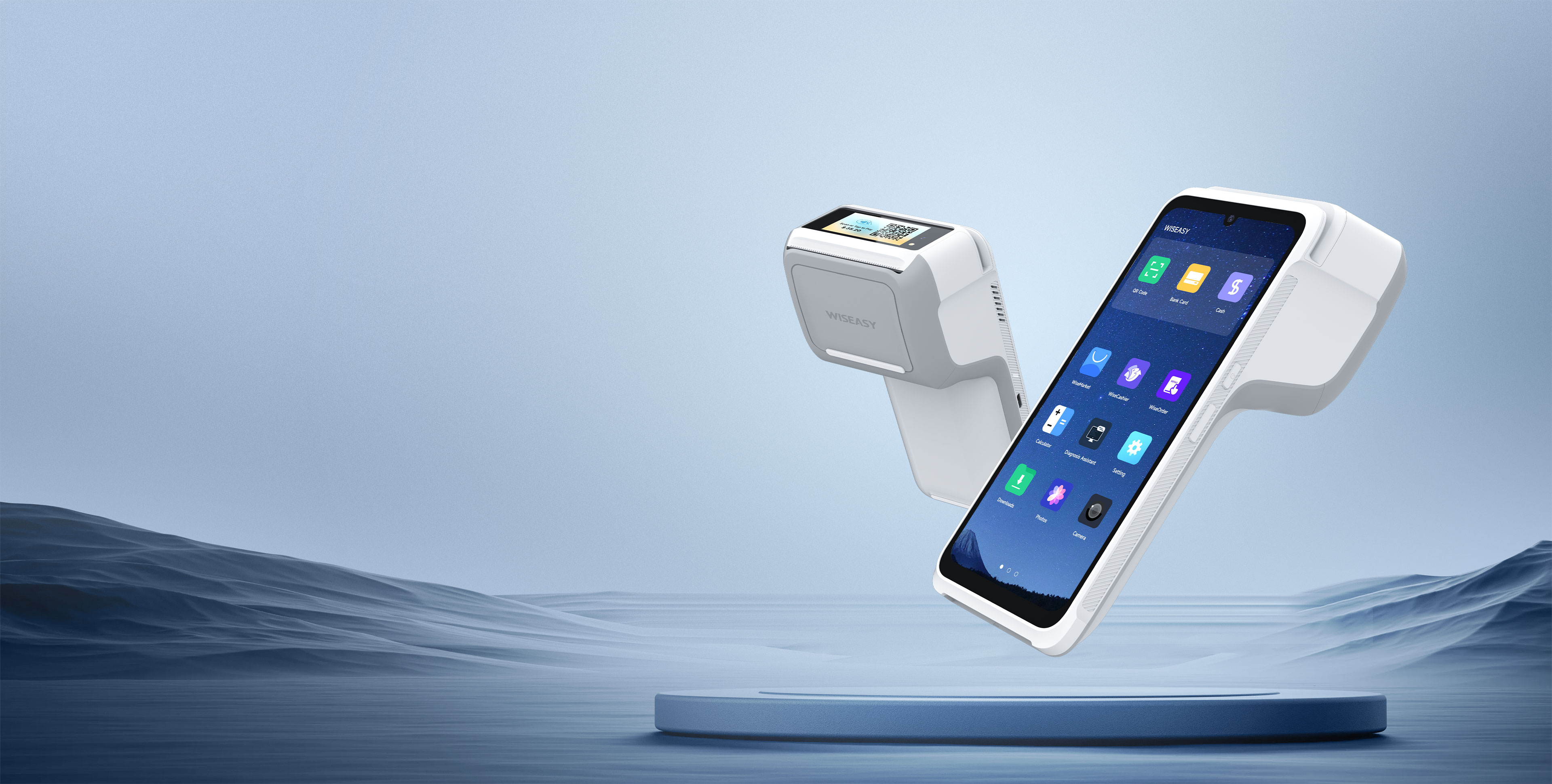

E1 Lite PRO E1 Lite PRO

WISEASY E1 Lite PRO
EMV Mini ECR

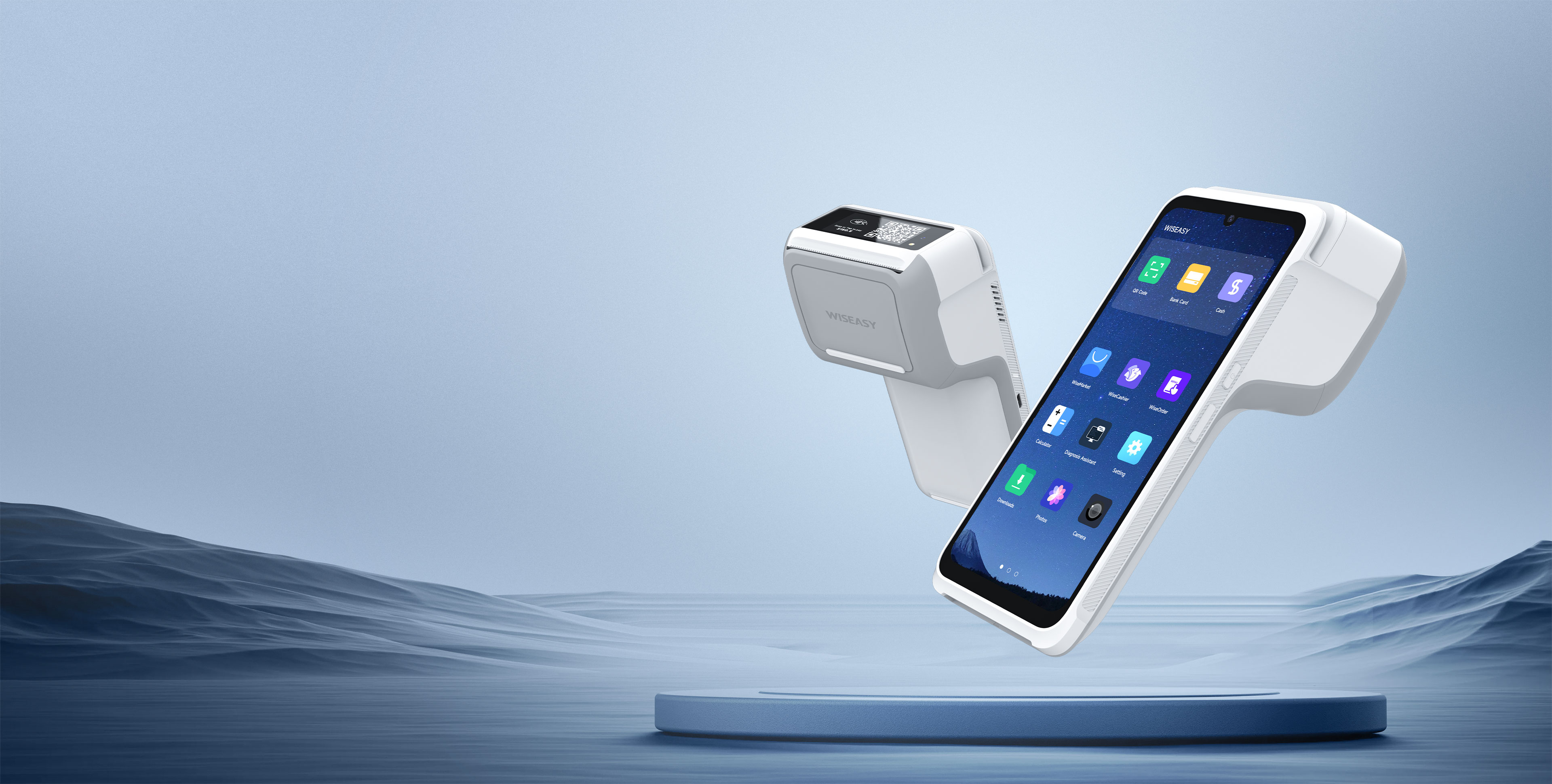

Dual Displays, Double the Clarity.

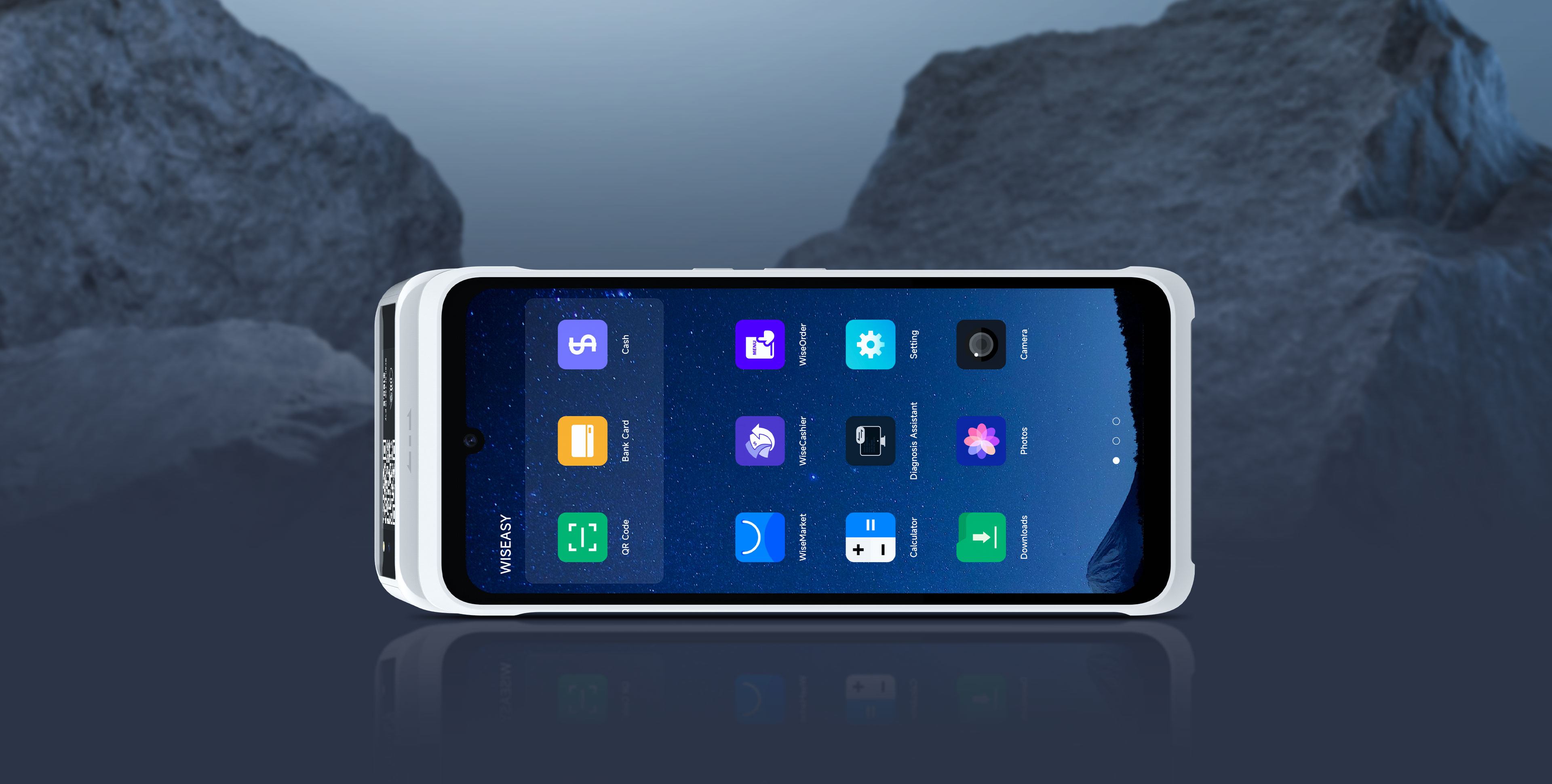

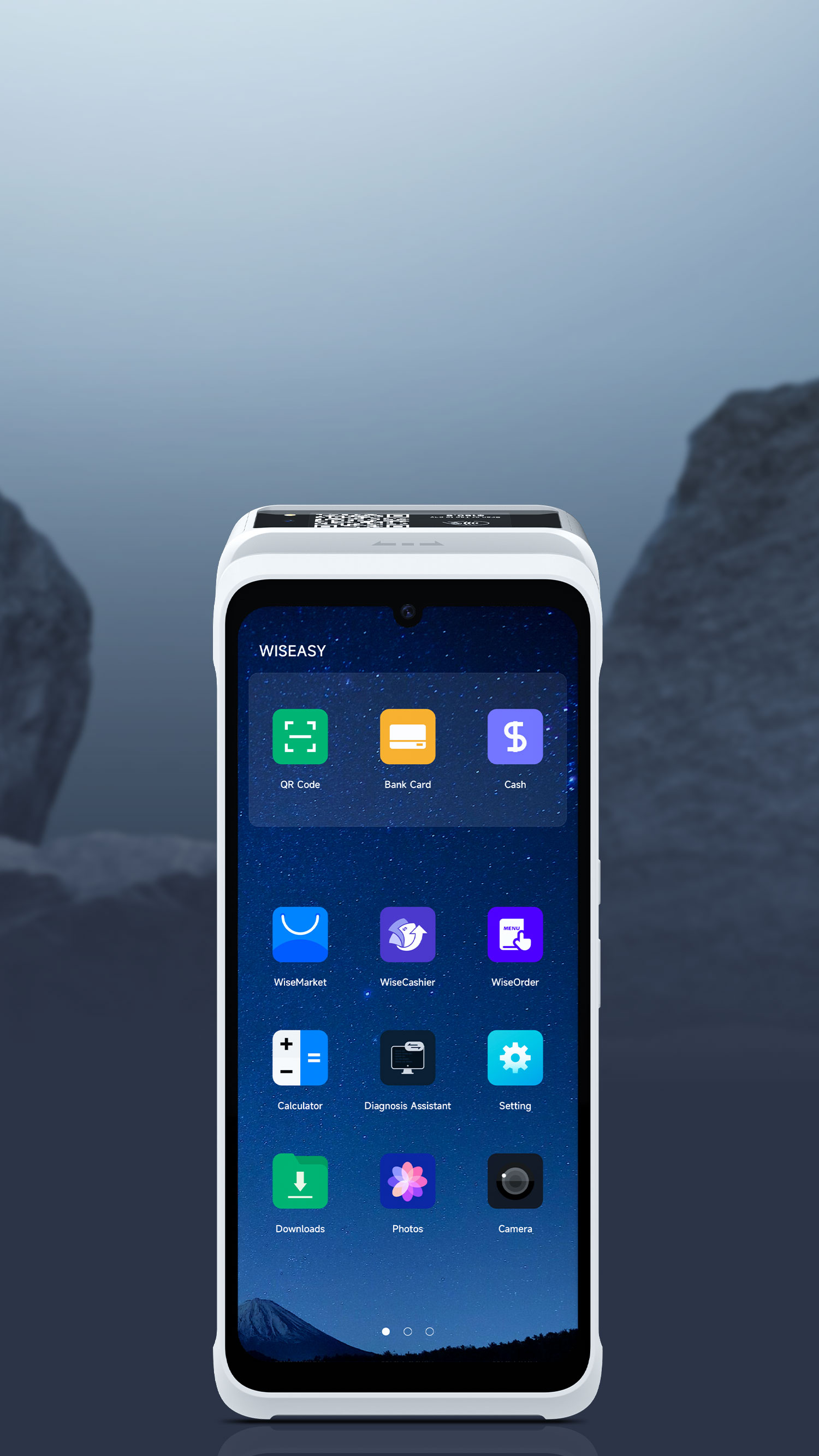

Immersive Touchscreen Clarity Immersive Touchscreen Clarity

Immersive Touchscreen Clarity

A vibrant 6.75-inch HD display (1600×720) delivers crisp visuals and intuitive navigation, making every transaction smoother for staff and more engaging for customers.

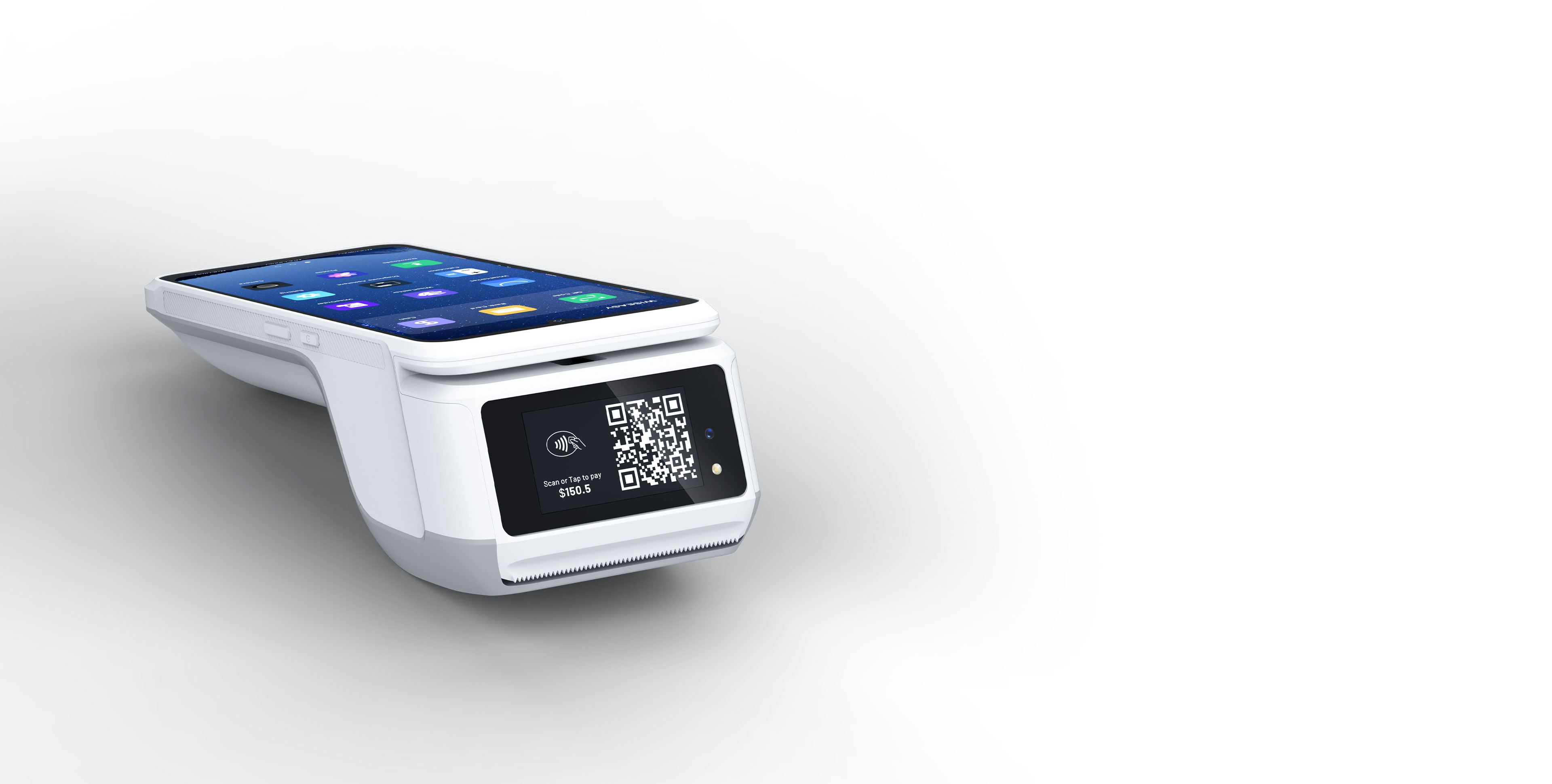

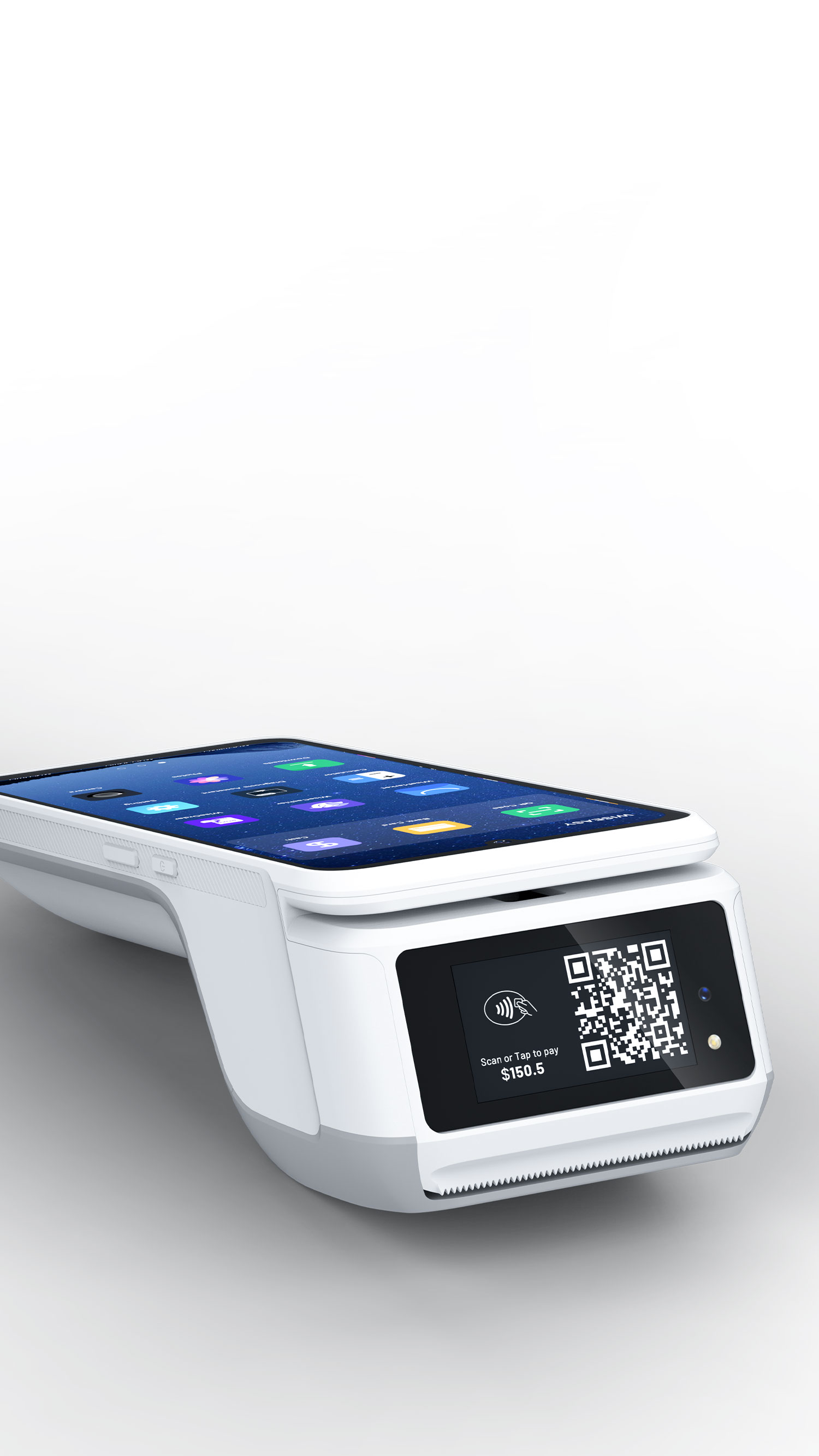

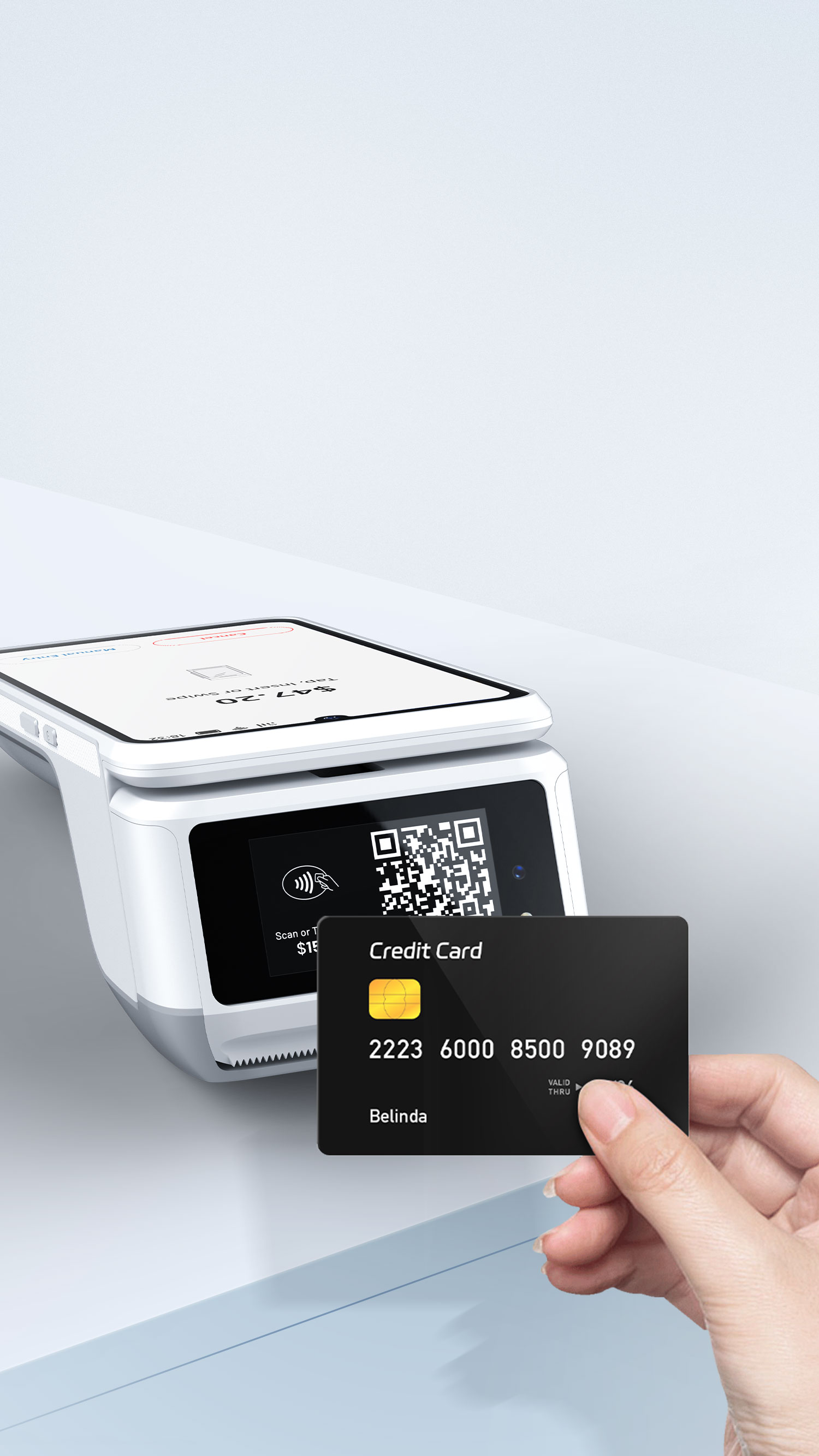

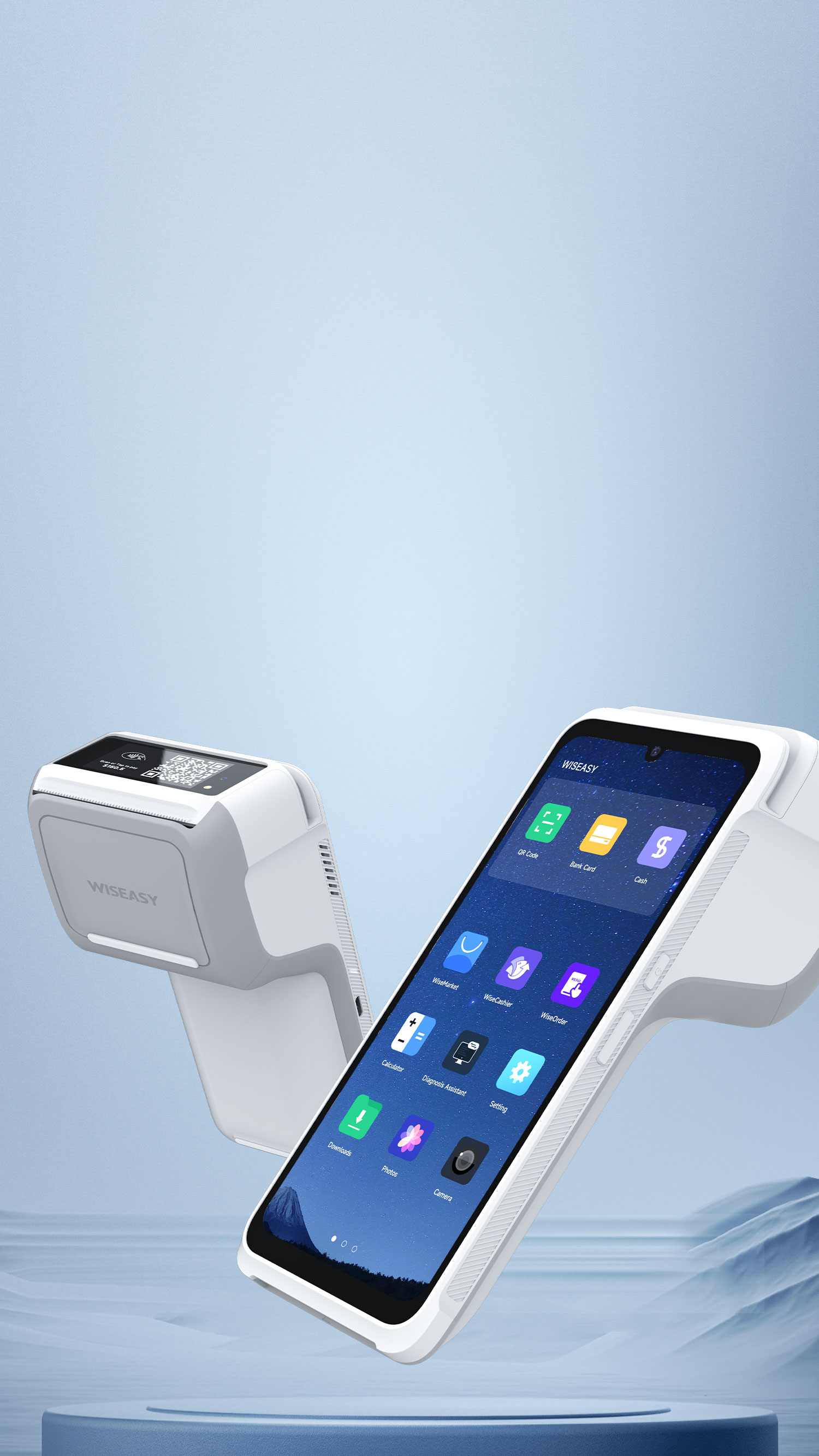

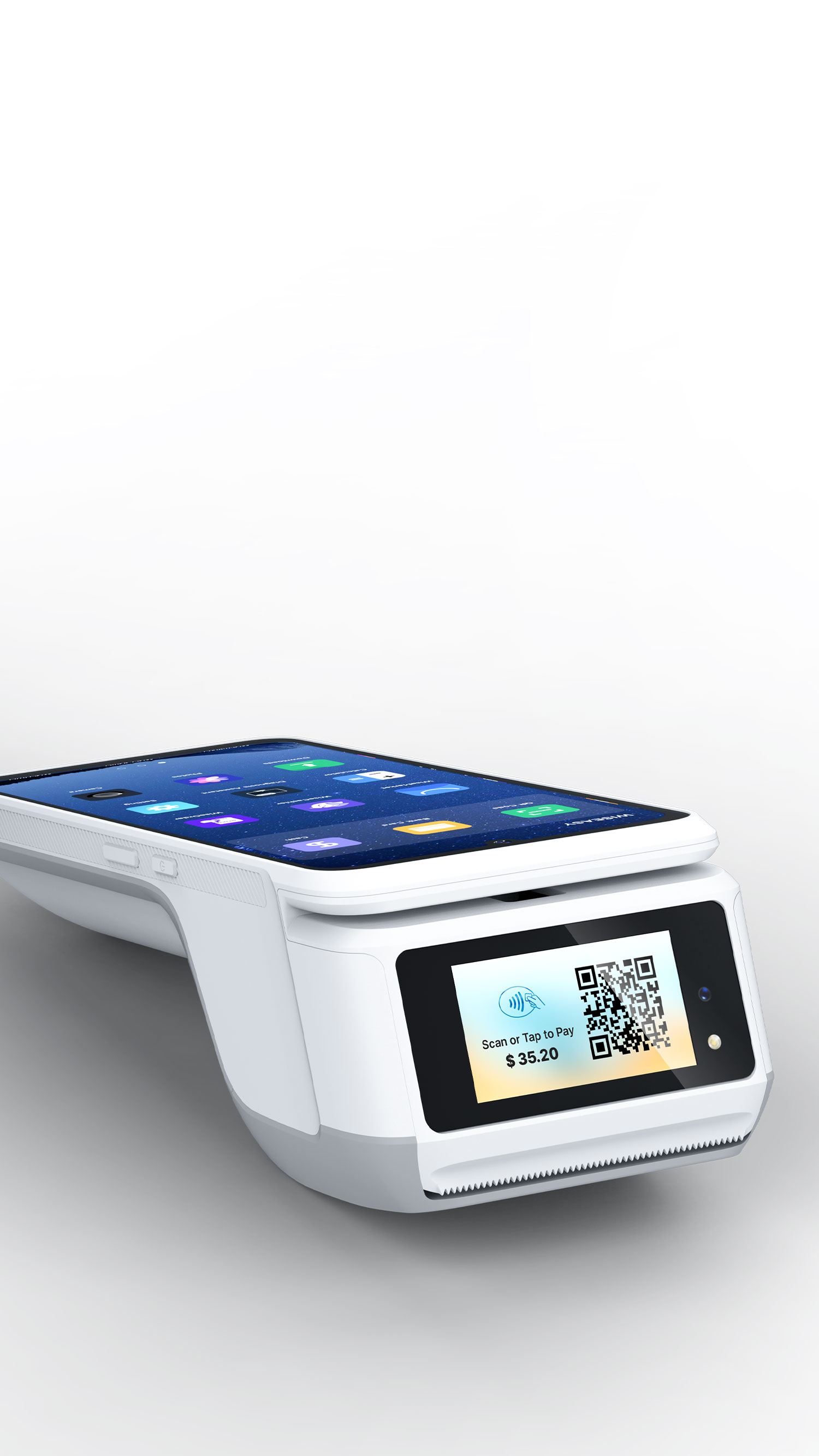

Dual Screens for Total Transparency Dual Screens for Total Transparency

Dual Screens for Total Transparency

With a dedicated customer-facing display for QR codes and transaction details, both merchants and shoppers stay aligned — ensuring speed, clarity, and trust.

Next-Level Performance Next-Level Performance

Next-Level Performance

Equipped with a high-speed 2.0GHz quad - core processor and running on the Android 13 operating system, it guarantees faster response times and smoother multitasking, enhancing overall operational efficiency.

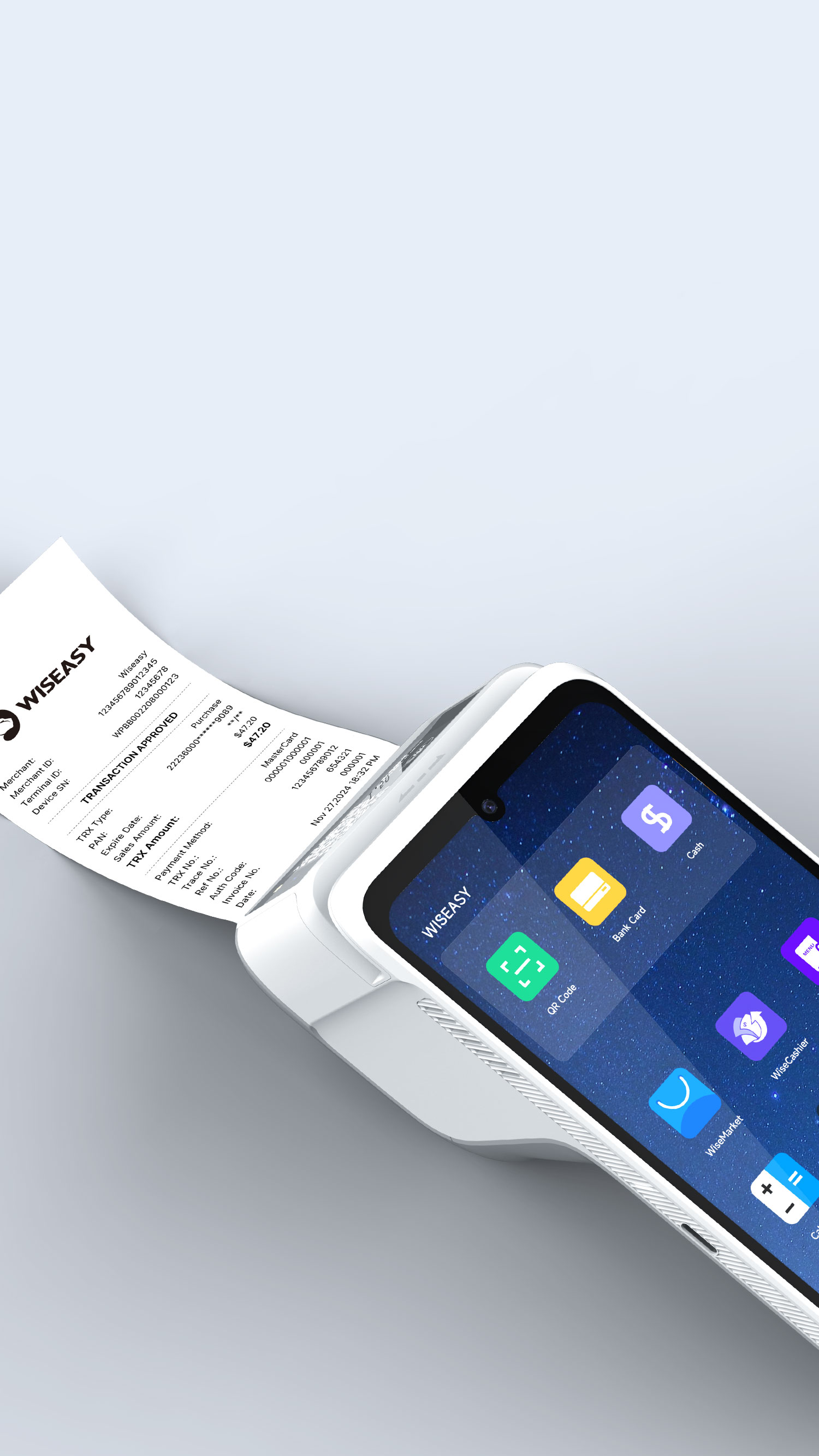

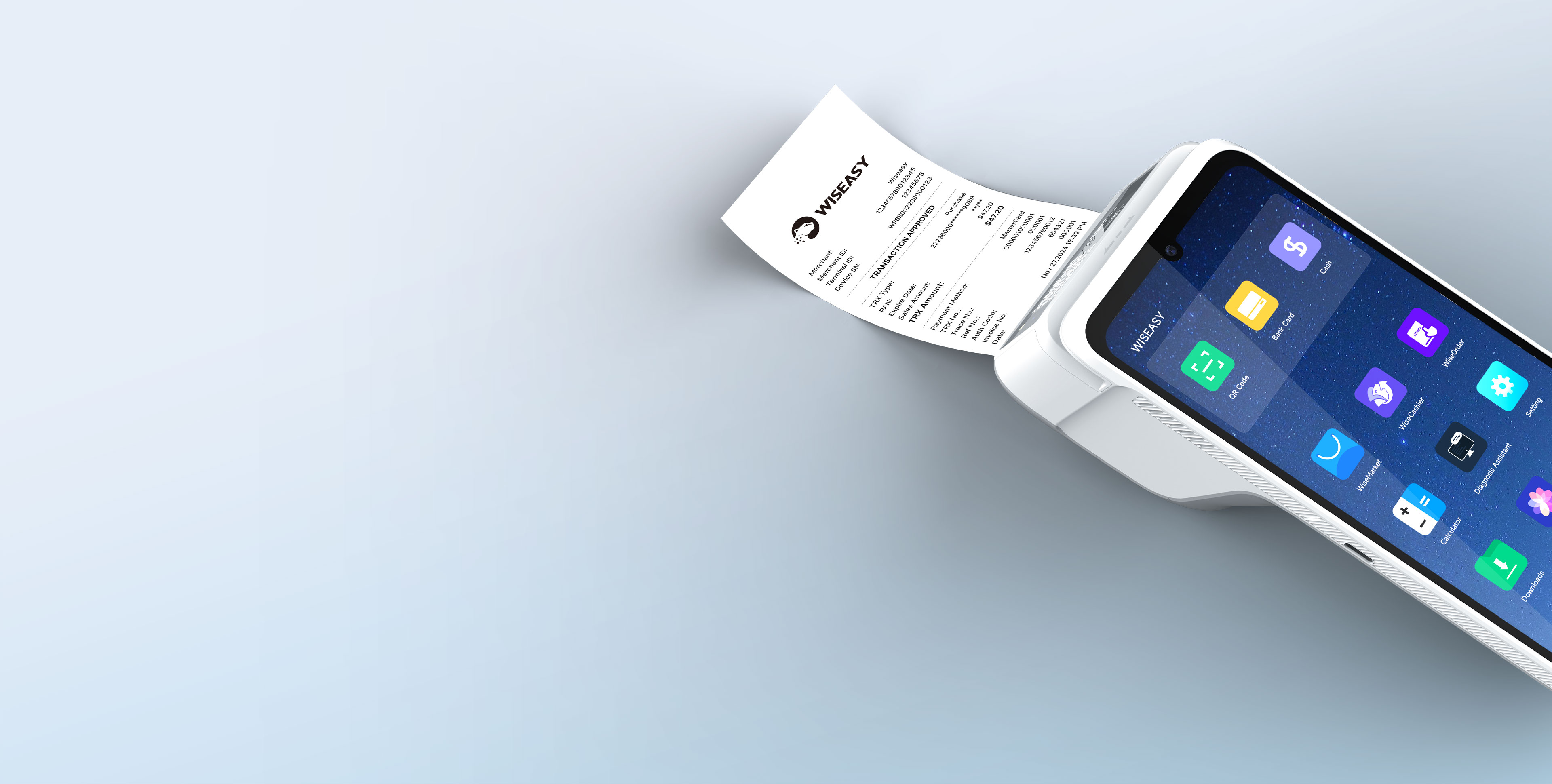

Fast. Clear. Effortless Printing Fast. Clear. Effortless Printing

Fast. Clear. Effortless Printing

Thanks to its professional thermal printer, it offers an impressively fast printing speed of up to 80mm/s, enabling quick issuance of receipts and minimizing waiting times.

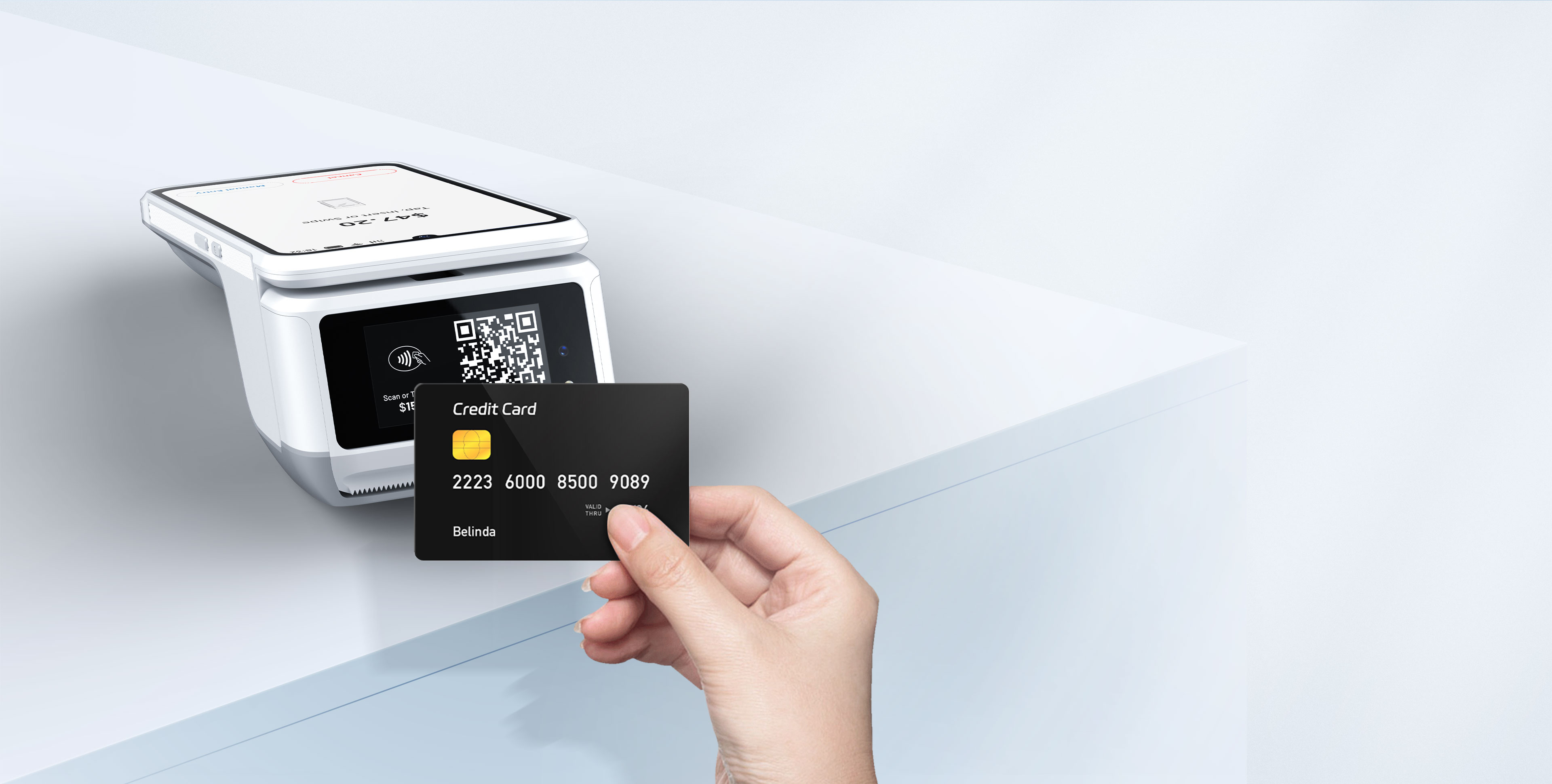

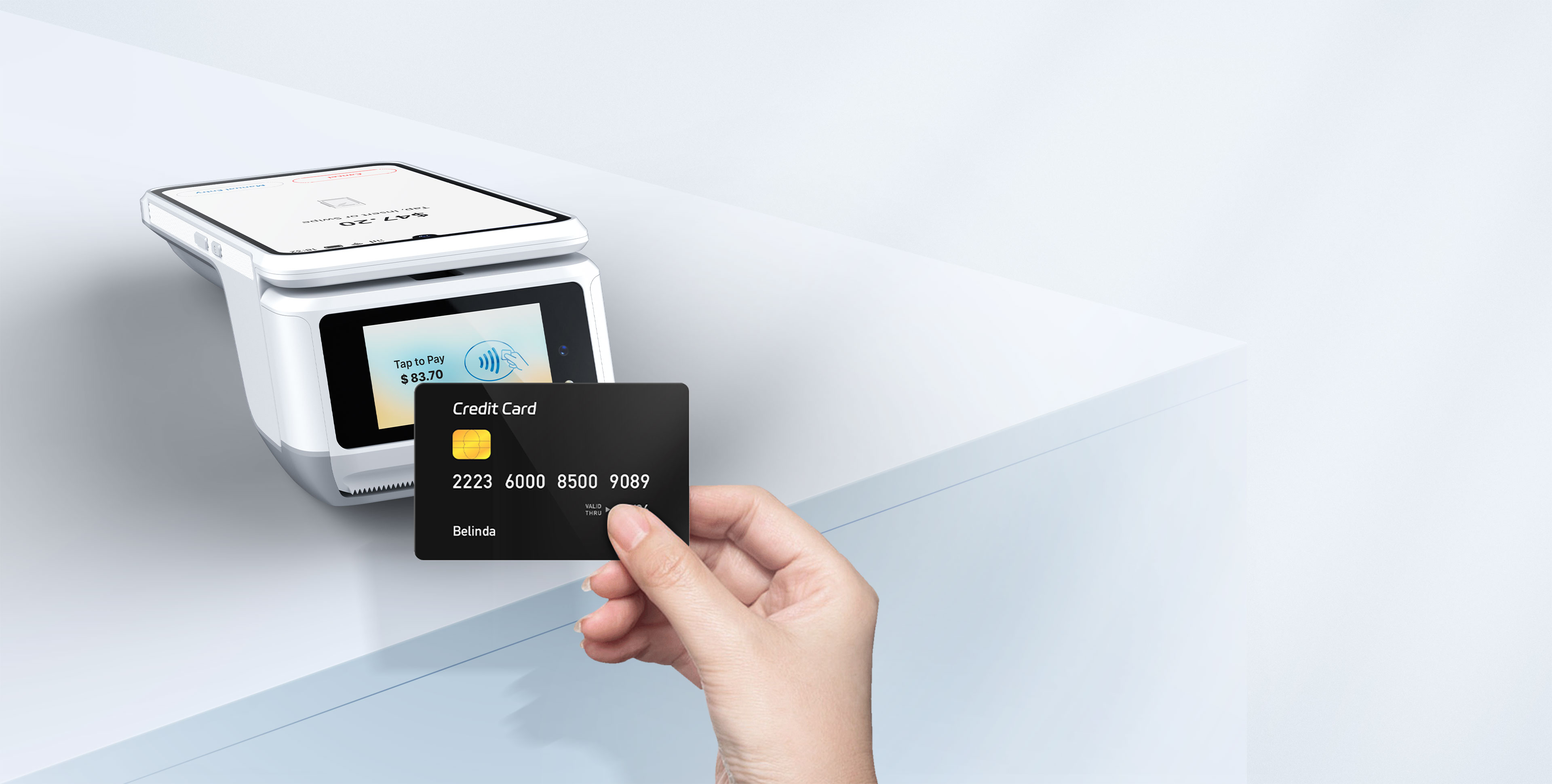

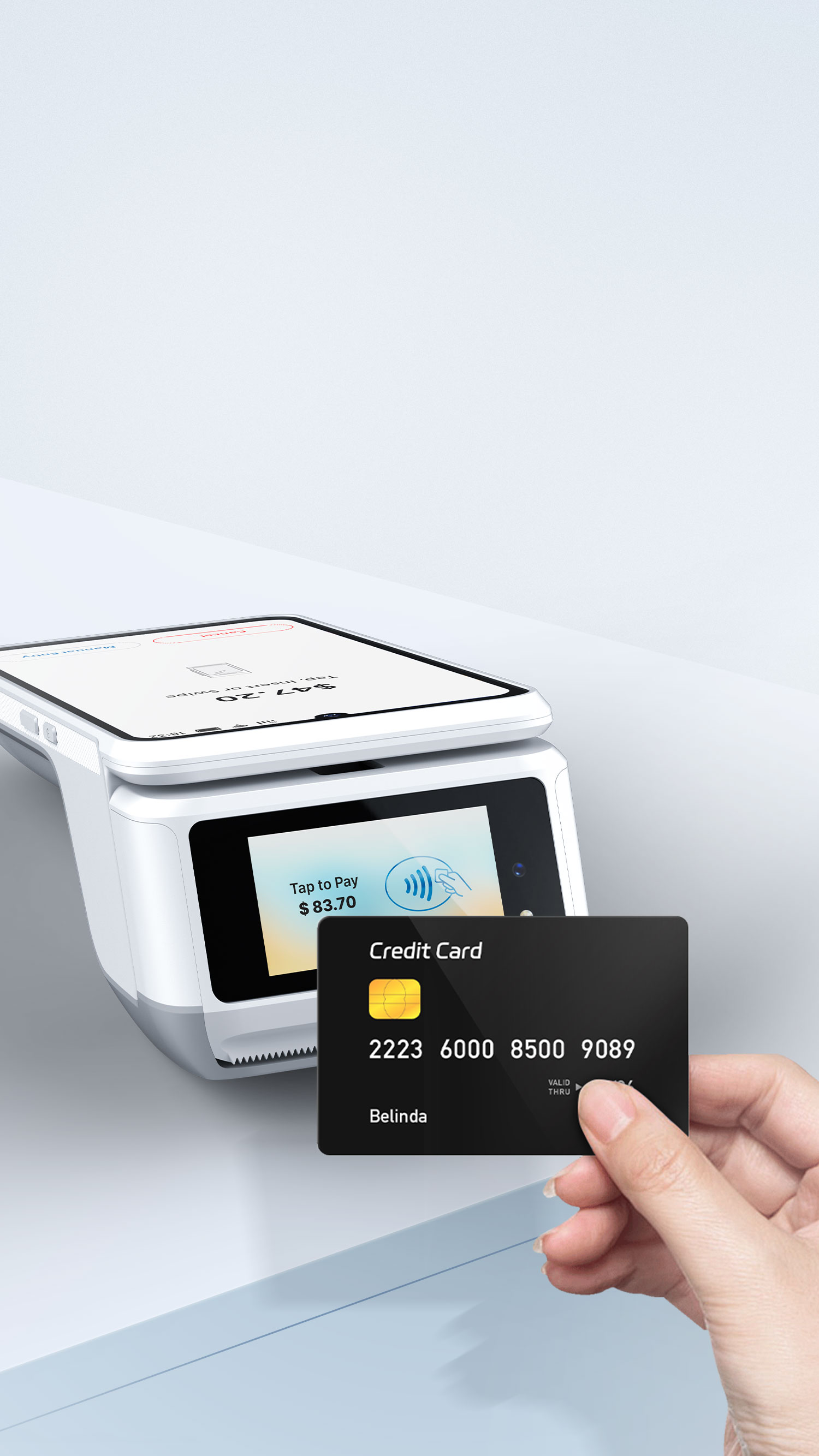

Tap-and-Go, Made Effortless Tap-and-Go, Made Effortless

Tap-and-Go, Made Effortless

The NFC receptor is ingeniously placed at the customer display screen. This ensures convenient and user - friendly NFC payment functions, providing consumers with a hassle-free payment option.

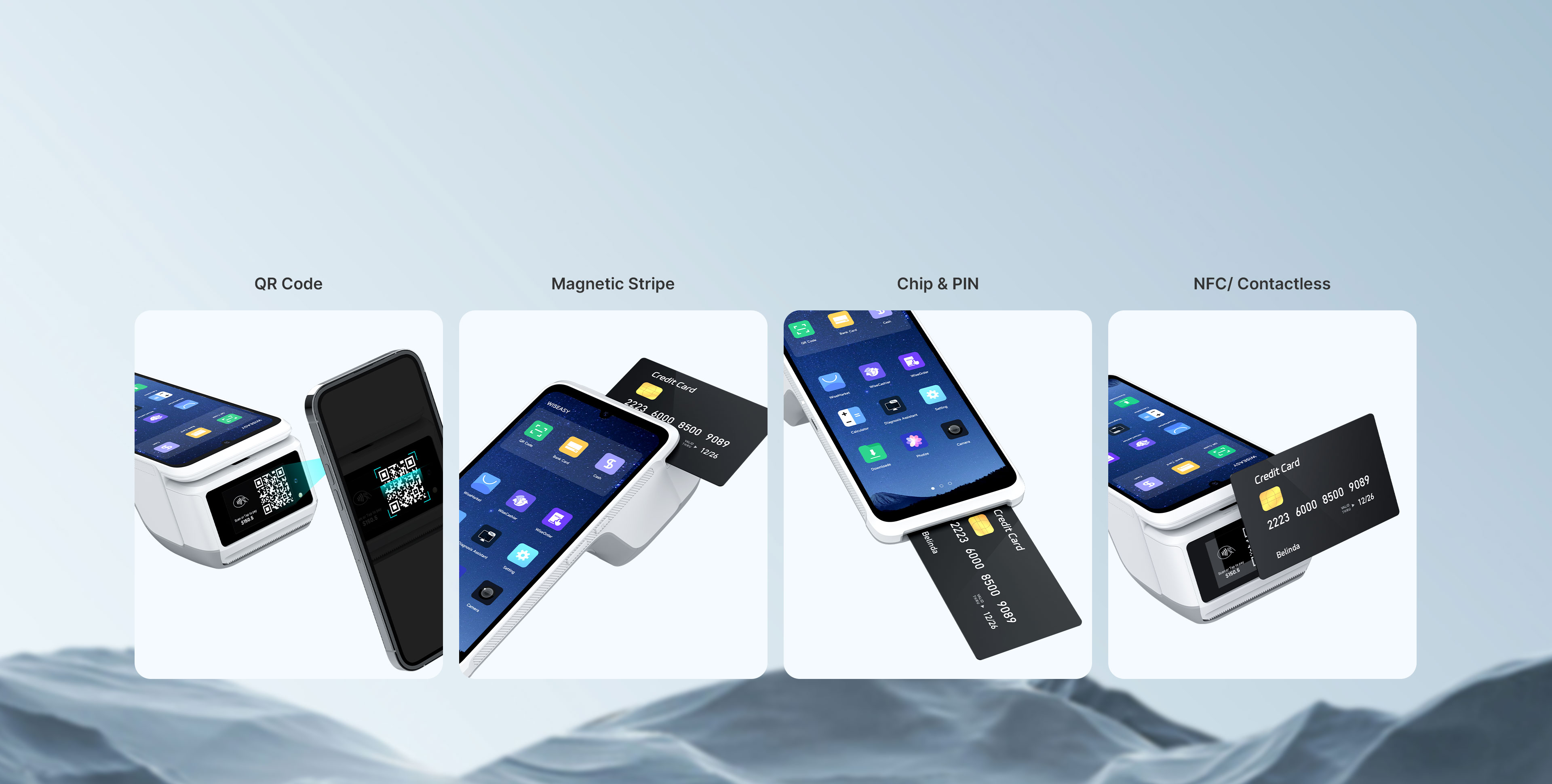

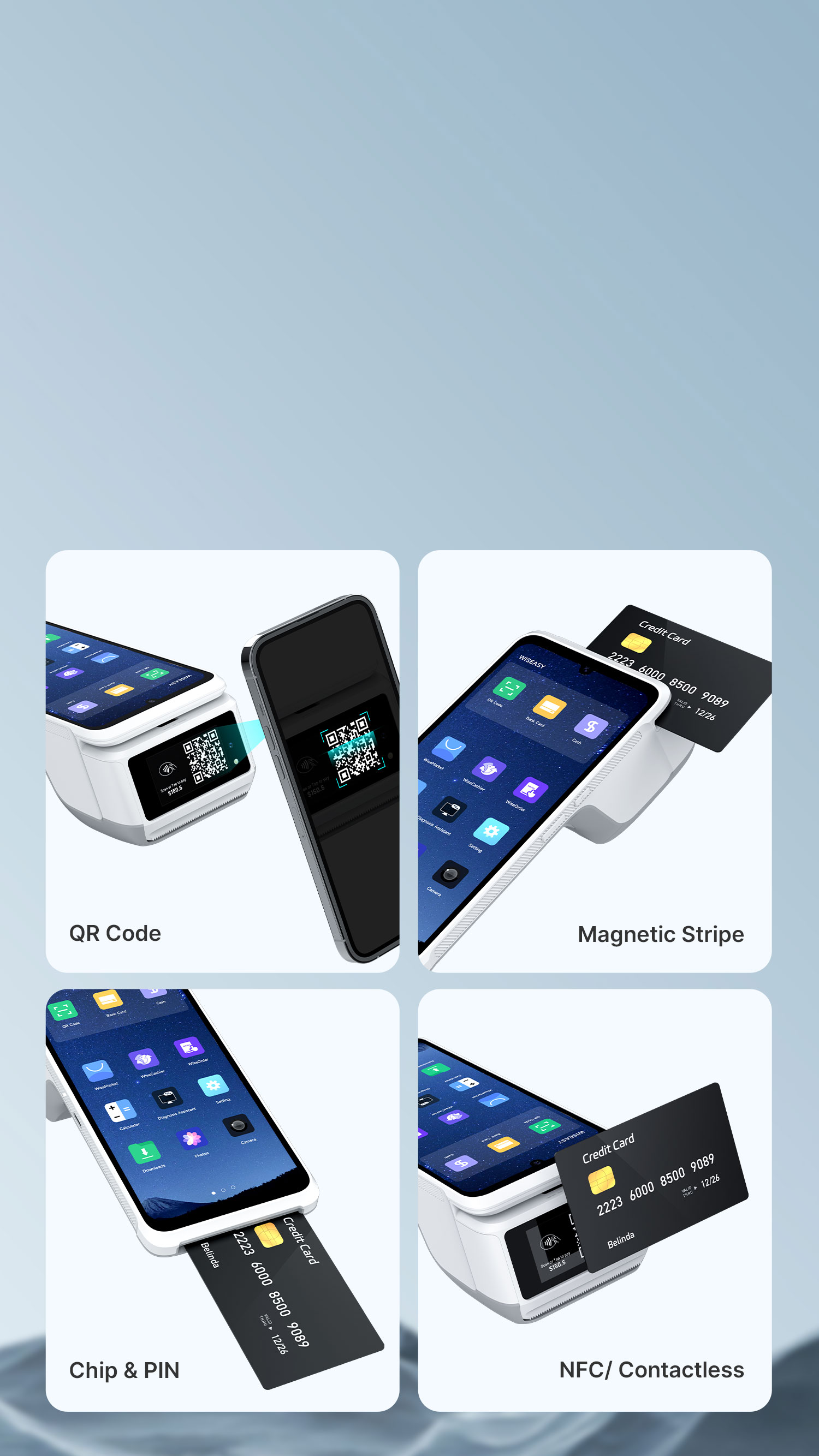

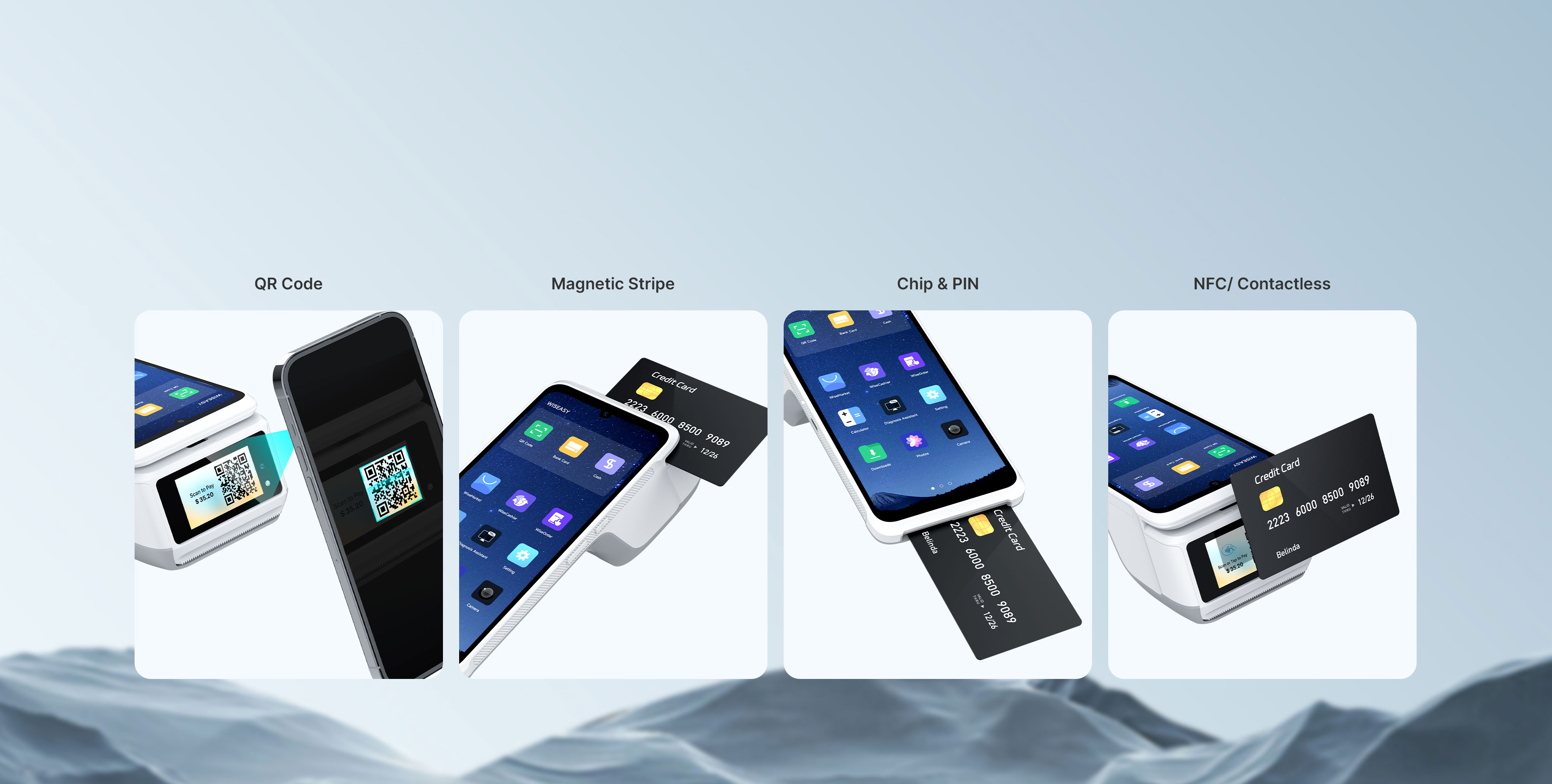

All Payments in One Terminal All Payments in One Terminal

All Payments in One Terminal

It supports a wide array of payment methods, including IC cards, magnetic stripe cards, NFC, and QR/barcodes, catering to the diverse needs of different payment scenarios.

WISEASY E1 Lite PRO Specifications

Model Name

Model Name

P051

Operating System

Operating System

Android 13

CPU

CPU

Quad-core 2.0GHz

Security Processor

Security Processor

MH2101

Memory

Memory

2GB LPDDR4X + 32GB eMMC

Optional: 3GB LPDDR4X + 64GB eMMC

Display

Display

Main display: 6.75 Inches (1600*720) IPS Capacitance, Multi-touch

Second display: 2 inches(170x320) IPS

Network

Network

2G/3G/4G

WIFI

WIFI

2.4G/5G, 802.11 a/b/g/n/ac

Bluetooth

Bluetooth

Bluetooth5.1, BLE

GPS

GPS

GPS/A-GPS, Glonass, Beidou, Galileo

Camera

Camera

Front Camera: 2M FF

Rear Camera: 2M FF

Flashlight LED: Torch LED 100mA

Audio

Audio

Speaker: 0.8W

Microphone: 1*MIC (Optional)

NFC

NFC

1. 13.56MHz

2. Support ISO/IEC 14443 Type A&B Mifare S50/S70

FeliCa Compliance

Card Reader

Card Reader

MSR: ISO7810-7813, 3 tracks

IC Card: ISO7816

Card Slot

Card Slot

1*Nano SIM + 2*PSAM + 1*Micro SD

1*Nano SIM + 1*Mini SIM + 1*PSAM + 1*Micro SD

Optional: 1*eSIM + 1*Nano SIM+ 2*PSAM

Button

Button

Power Button / Multifunction Button

Battery

Battery

Removable, 7.2V high Voltage, 2600mAh, 18650

Optional: Removable, 7.2V high Voltage, 3350mAh, 18650

Peripheral Ports

Peripheral Ports

Type C USB2.0, High Speed, OTG

Weight

Weight

485g

Size (L*W*H)

Size (L*W*H)

195*81*61 mm

Printer

Printer

2" High Speed Thermal Printer

Roll Size: 58*40mm

Print Speed: 80mm/s Laboratory tested

Adapter

Adapter

Input: AC 100-240V, 50/60Hz

Output: 5V/2A

Accessories

Accessories

Optional: Professional High-speed Scanner

Environment

Environment

Storage temperature: -20°C to 60°C

Operating temperature: -10°C to 55°C

Humidity: ≤95%

Certifications

Certifications

EMV CT L1/L2, EMV CTLS L1, VISA, Mastercard, AMEX, Discover, PCI PTS 6.2, TQM, CE, CB, BIS, WPC, RoHs
